LC 2-Color Closed Ink Cup Pad Printing Machine with Independent Pad Shuttle System

Payment Terms : Western Union,T/T,D/P,D/A,L/C

ink cup size : 135*125mm

Pressure Requirements : 6 Bar

Weight : 200Kg

Delivery Time : 35days

Maximum printing area : 130 * 180mm

Power : 35 W

Model Number : LC-PM2-250/2PT

Printing color : 2 color

MOQ : 1set

Packaging Details : WOODEN CASE

Table size : 165 * 165 mm

The fastest speed : 1300 Pcs / Hr

Price : US $ 7450 / set

Standard plate area : 150 * 300mm

Air consumption : 82Liter / Min

Machine size : 910* 580* 1470mm3

Voltage : 220V 50Hz

Brand Name : LC

Model : LC-PM2-250/2PT

Certification : CE

Printing station : 1Pcs

Place of Origin : China

The pad font and back stroke : 250mm

Contact Now

LC 2-Color Closed Ink Cup Pad Printing Machine with Independent Pad Shuttle System

The LC-PM2-250/2PT is a high-performance 2-color pad printing machine, featuring full PLC control and an independent pad shuttle design. It offers a 250mm stroke and a high production capacity of 1,300 pieces per hour, supporting a maximum printing area of 130×180mm. With its compact structure (200kg), low energy consumption, and integrated automatic cleaning system, it is highly suitable for industrial environments that demand high efficiency and precision.

Model	LC-PM2-250/2PT
Printing color	2 color
Printing station	1Pcs
The pad font and back stroke	250mm
Table size	165 * 165 mm
Standard plate area	150 * 300mm
ink cup size	135*125mm
Maximum printing area	130 * 180mm
The fastest speed	1300 Pcs / Hr
Voltage	220V 50Hz
Power	35 W
Pressure Requirements	6 Bar
Air consumption	82Liter / Min
Machine size	910× 580× 1470mm3
Weight	200Kg

LC 2-Color Closed Ink Cup Pad Printing Machine with Independent Pad Shuttle System

Product Tags:

Independent Shuttle Pad Printer

2-Color Closed Cup Machine

LC-PM2-250-2PT Pad Printer

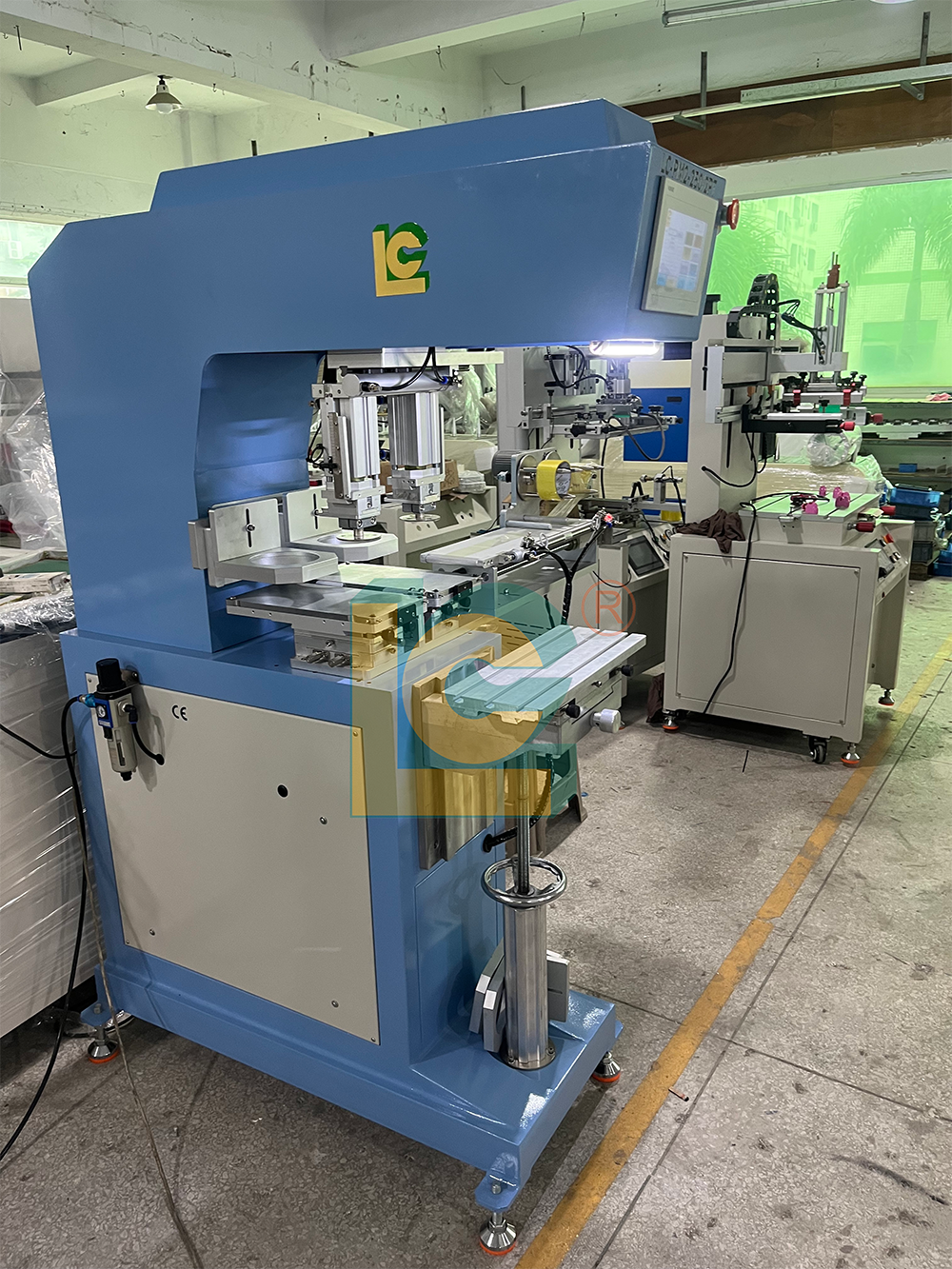

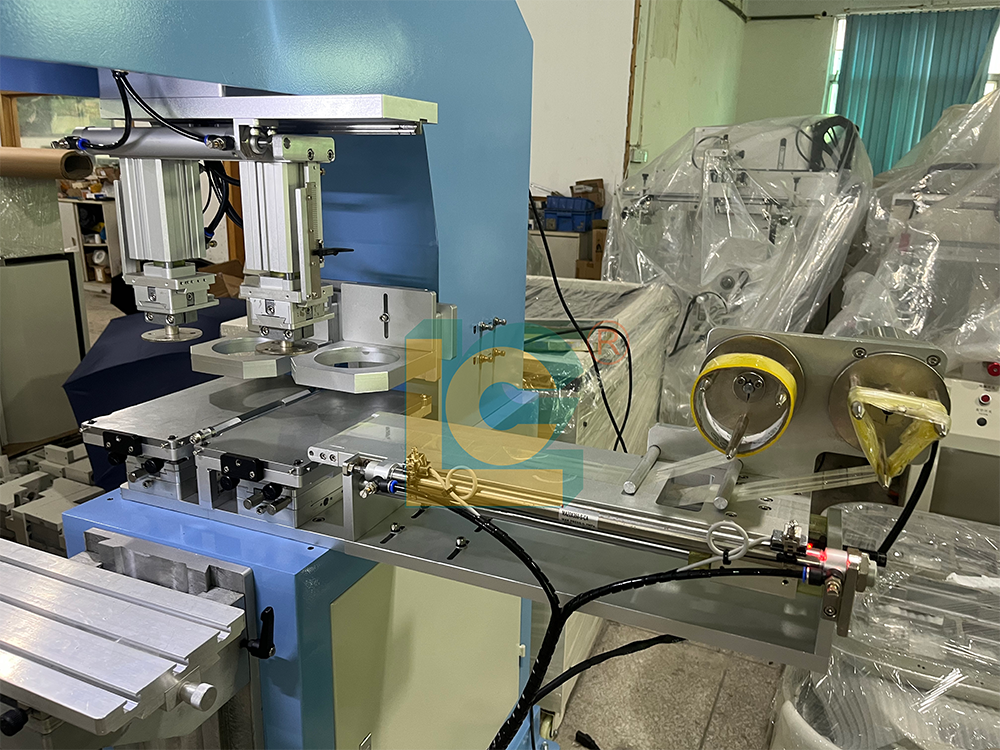

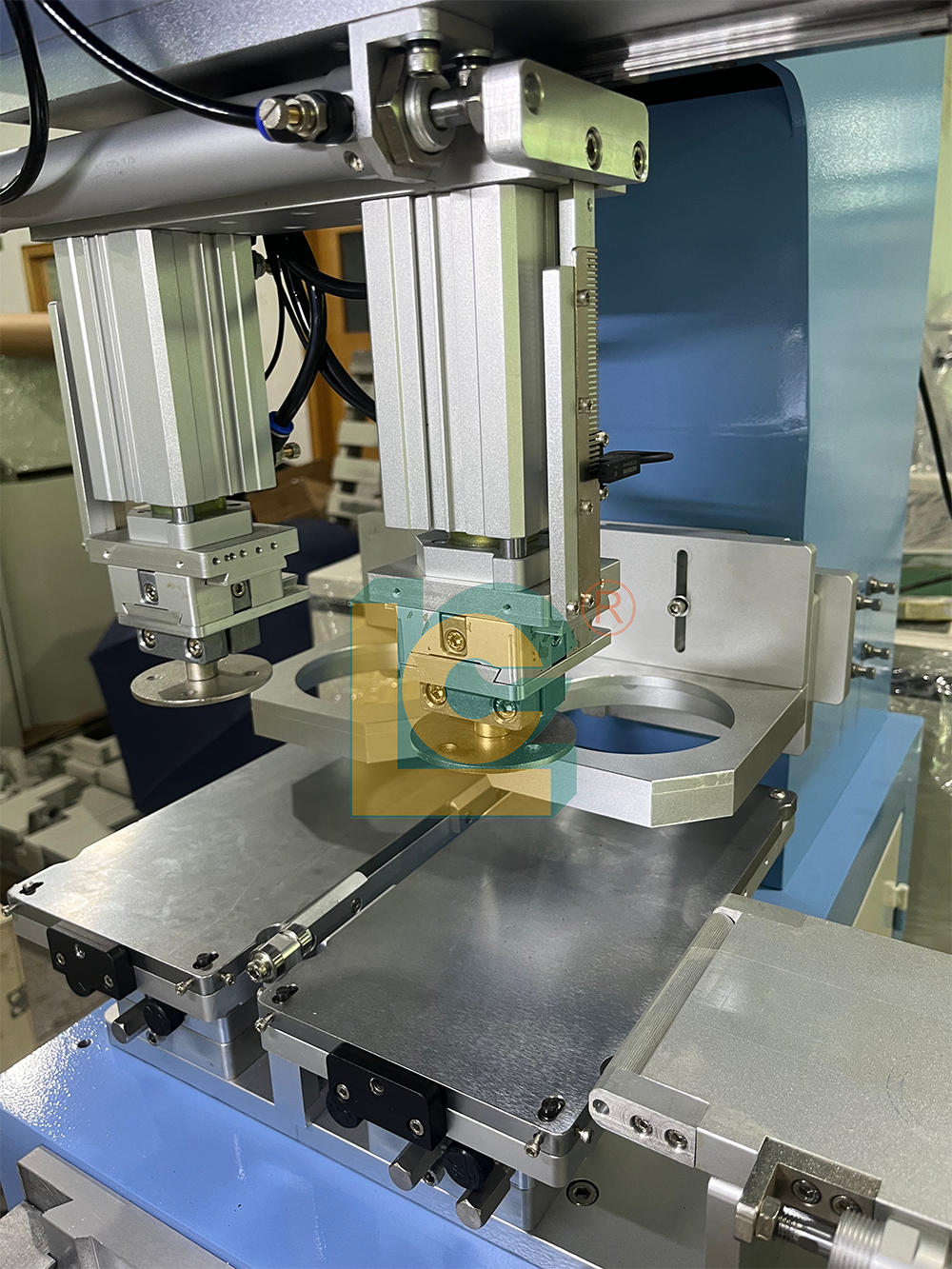

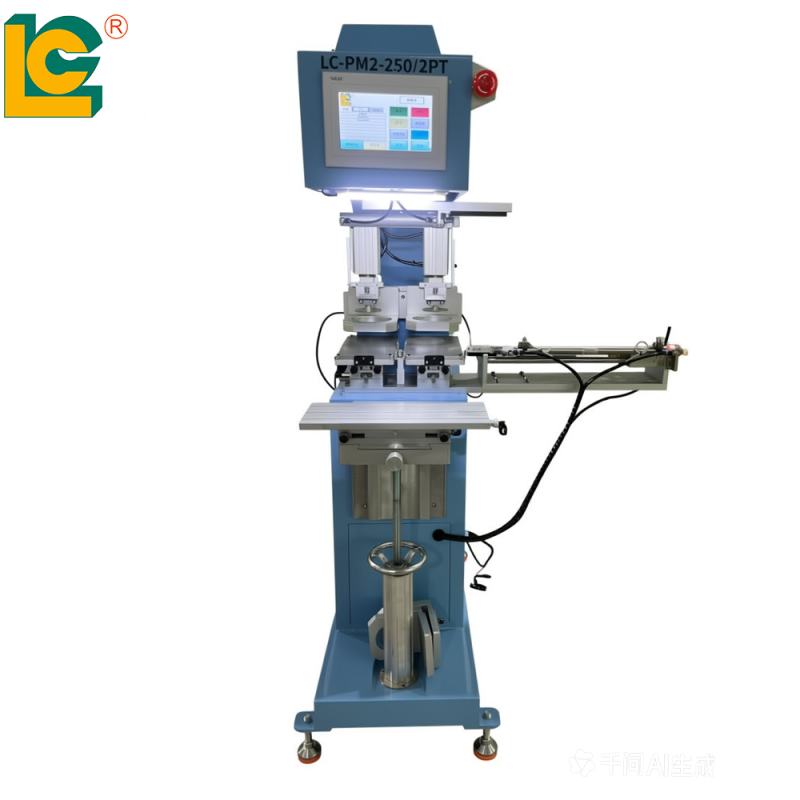

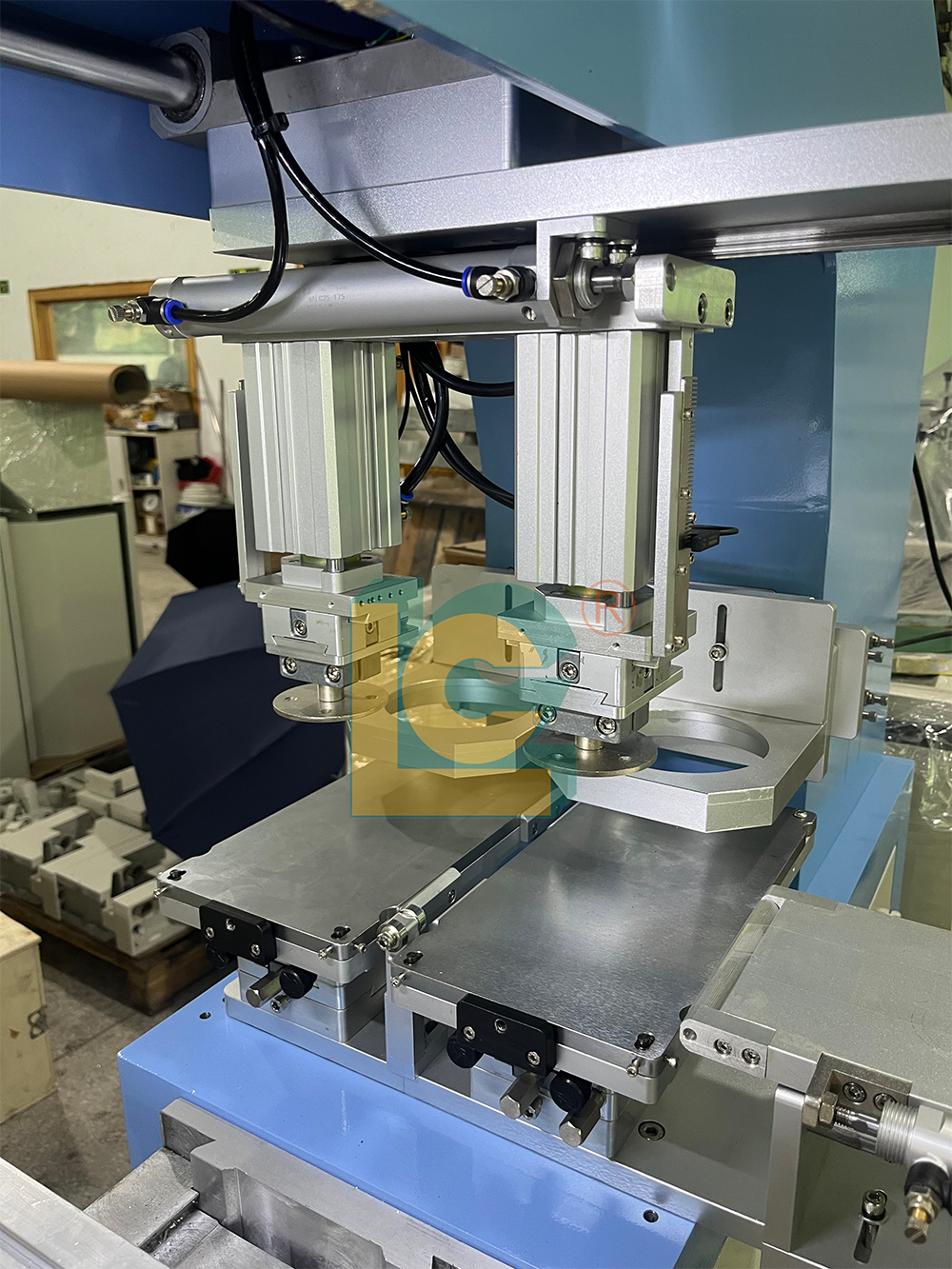

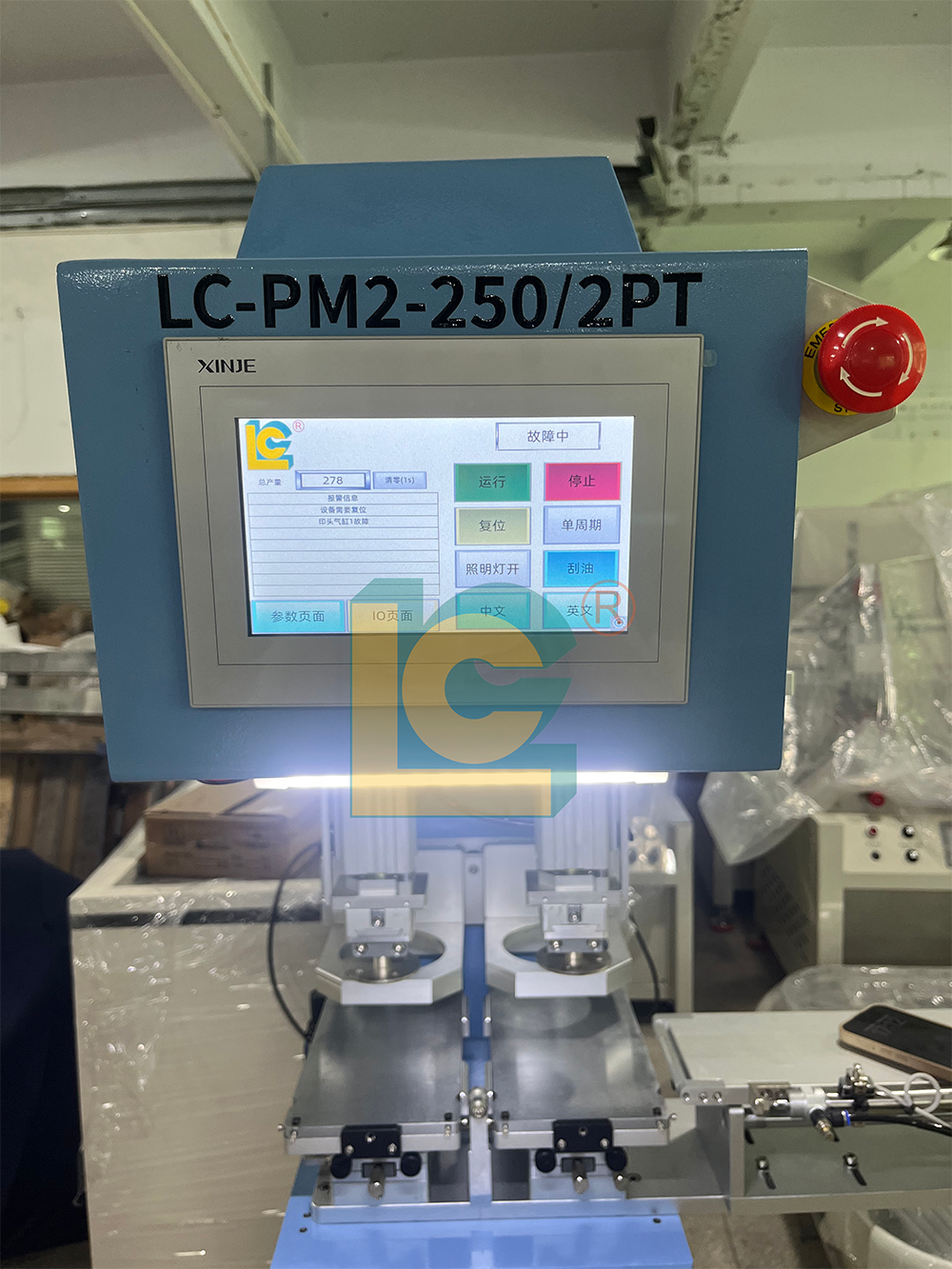

LC 2-Color Closed Ink Cup Pad Printing Machine with Independent Pad Shuttle System Images
